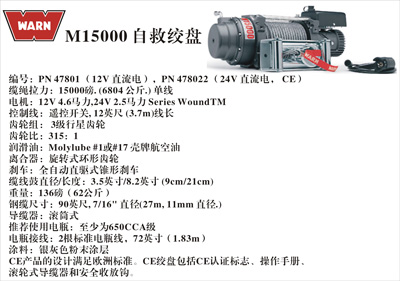

WARN(沃恩)M15000电动绞盘,全重62kg,采用4.6hp直流电机,单线拉力15000磅(6804公斤力),遥控操作距离3.7m,直径11mm钢缆长27m。正常使用至少需要650 CCA(冷起动电流)的电池供应。整机体积556mm L. x 215mm D. x 279mm H.

When you work hard enough to need a really big truck, you'll want a winch with enough capacity to get the job done. The WARN M15000 winch boasts high strength carrier plates to handle the gear train stresses of a 15,000lb load. The gear ratio is 315:1, with 90 feet of 7/16" wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.

Part Numbers: PN 47801 CE (12V DC), PN 478022 CE (24V DC)
Rated Line Pull: 15000 lbs. (6804 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp Series Wound TM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 315:1
Lubrication: Molylube #1 or Aeroshell #17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 136lbs. (62kgs.)
Wire Rope: 90', 7/16" diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 61946
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead and safety hook.

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 22.2(6.77) 67 amps 1/15000(6804)
2000(910) 7.27(2.22) 135 amps 2/13890(6300)
4000(1810) 5.41(1.65) 185 amps 3/11520(5225)
6000(2720) 4.43(1.35) 235 amps 4/9840(4463)
8000(3630) 3.79(1.16) 285 amps
10000(4540) 3.31(1.01) 335 amps
12000(5440) 2.93(.893) 385 amps
14000(6350) 2.61(.796) 435 amps
15000(6800) 2.48(.756) 460 amps

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 28(8.6) 24 amps 1/15000(6800)
2200(1000) 10.2(3.1) 85 amps 2/13900(6300)
4400(2000) 7.5(2.3) 115 amps 3/11400(5200)
6600(3000) 6.9(2.1) 142 amps 4/9700(4400)
8800(4000) 6.6(2.0) 170 amps
11000(5000) 6.2(1.9) 190 amps
13200(6000) 5.2(1.6) 210 amps
15000(6800) 4.3(1.3) 235 amps
Above performance specs are based on first layer of drum


Winch Dimensions: 25.2" L. x 8.5" D. x 11" H. (556mm L. x 215mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
