WARN(沃恩)16.5ti电动绞盘,全重63kg,采用4.6hp直流电机,单线拉力16500磅(7484公斤力),遥控操作距离3.7m,直径11mm钢缆长27m。正常使用至少需要650 CCA(冷起动电流)的电池供应。整机体积628mm L. x 216mm D. x 247mm H.

What do you get when you combine 16,500 lbs. of pulling power with all the innovative features of the WARN ti-series? The WARN 16.5ti winch. The highest capacity, most technologically advanced truck winch in the industry today.

The 16.5ti features the full diagnostic ability of WARN Thermometric technology, plus the extreme sealing, durability and reliability that the WARN ti-series of winches are known for. The new, more efficient design delivers faster line speeds and lower amp draw. It's beefed up where needed, and features a new aluminum solenoid housing cover. Not to mention 90 feet of aircraft grade, 7/16" wire rope.

If you've got a big rig, and you like to load it up, this is the winch to handle it.
Part Number: PN 68801 CE (12V DC)
Rated Line Pull: 16500 lbs. (7484 kgs.) single-line
Motor: 12V 4.6 hp, Gen II, Series Wound
Remote Control: Remote switch, ti, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 315:1
Lubrication: Molybue: #1 or Aeroshell #17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Wire Rope: 90', 7/16" diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Chromate with high-gloss dark gray powder coat
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 138 lbs. (63 kgs.)

Line Pull
Line Speed
Pull by layer
0 23.6(7.20) 68 amps 1/16500(7484)
2000(907) 12.07(3.68) 138 amps 2/15279(6930)
4000(1814) 9.22(2.81) 189 amps 3/12672(5748)
6000(2721) 7.37(2.25) 240 amps 4/10824(4910)
8000(3628) 6.08(1.85) 291 amps
10000(4536) 5.12(1.56) 342 amps
12000(5443) 4.40(1.34) 393 amps
14000(6350) 3.86(1.18) 444 amps
16000(7257) 3.38(1.03) 494 amps
16500(7484) 3.24(0.99) 507 amps

Above performance specs are based on first layer of drum

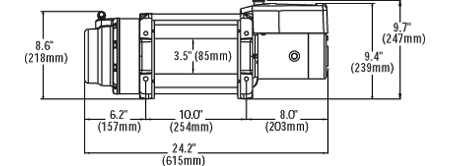

Winch Dimensions: 24.7" L. x 8.5" D. x 9.7" H. (628mm L. x 216mm D. x 247mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
