| | Hydraulic Recovery Winch HV-20000 |
| |  |
| | Note: Roller fairlead does not mount to winch |
| |
FEATURES
● Hydraulic motor with negative brake and needle bearings for highholding torque and minimum servicing.
● Compact unit with maximum brake/motor integration.
● High efficiency 2-stage planetary gear train for greater pullingforce.
● Spring applied drag brake with one-way freespool.
● Rotating ring gear freespool is a pull and turn design for rapid wirerope payout.
● 10:1 D/d ratio allows for heavy duty applications on car transporterwrecker, tractor, lorry and fire/rescue engine.
|
| | |
| | SPECIFICATION
| | Line Pull : 9,090kg / 20,000 lb | | | LineSpeed : 7.2 mpm / 23.6 fpm | | | Operation Pressure: 172 bar / 2,500 psi | | | Max oil Flow: 15.9 g/min (60 l/min) | | | Motor Displacement: 125 cm3 / rev (7.6 in3 / rev) | | | Motor Rotation:.anti-clockwise | | | Gear Train: 2 stage planetary gears | | | Gear Ratio: 32 : 1 | | | Freespool: Rotating ring gear | | | Brake: Spring applied, multi-disc brake integrated in motor | | | Drum Barrel Diameter : 140 mm (5.51")
Distance between Flanges : 370 mm (14.57") | | | Mounting Bolt Pattern :
470 mm x 254 mm (18.5" x 10")
571.6 mm x 254 mm (22.5" x 10")
|
|
| | |
| | LINEPULL AND ROPE CAPACITY
Layer of
Wire Rope
| Line Pull
kg/lb
| Line Speed at 15.9 g/min (60 L/min) mpm/fpm | Total Rope onthe Drum
m/ft | | 1st | 9,090 / 20,000 | 7.2 / 23.6 | 12.3 / 40.4 | | 2nd | 7,691 / 16,956 | 8.5 / 27.9 | 26.8 / 87.9 | | 3rd | 6,664 / 14,692 | 9.8 / 32.2 | 43.6 / 143.0 | | 4th | 5,880 / 12,963 | 11.1 / 36.4 | 62.6 / 205.4 | | 5th | 5,260 / 11,596 | 12.4 / 40.7 | 80.0 / 275.0 |
A 14 mm x 80 m ( 9/16" x275') x W (19) + 1WRC, wire rope recommended |
|
WARNING
Winches are not to be used for the lifting or moving of persons
WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
|
| |

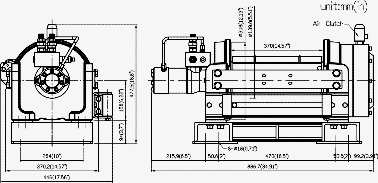

DIMENSIONS(mm) |
| | |
| |  |
| |
HYDRAULIC SYSTEM INSTALLATION |
|  |
| ADVANTAGE:
Professionalwinch system for"Working" applications, cost effective, extremelypowerful, reliable, light weight and variable line speed for high workrate. |
| |
STANDARDACCESSORIES
● Roller fairlead WA-0513
● Cable tensioner WA-0904
● Air clutch WA-1001
● Over center valve WA-1302
● Base plate
PACKAGE
● Winch weight : 200 kg / 440 lb
● Gross Weight : 230 kg / 506 lb
● Box Dimension : 940 x 500 x 670 mm(37" x 19.7" x 26.4") |
| | |
| | |
