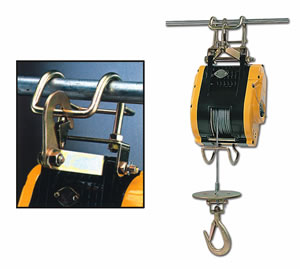

| | | | | | | | > AC Winch > Baby Winch > CWS-80 |  | | | Baby Winch CWS-80 | | |  | | | | | | FEATURES
● Lightweight and compact design
Allows easy installation
● Automatic upper limit switch
When rope disc touches the limit arm,
hoisting is automatically stopped
● Dynamic and mechanical brake
Provides instant and safe braking
● Can operate on standard domestic power supply
● Sensor arm automatically stops motor if the wire rope is under-wound
● Wire rope comes with a 60º weight hook with safety latch
● Motor rating IP44
● Heavy duty IP65 waterproof switch with emergency stop PB-316 as an option
| | | | | | SPECIFICATION
| | Lifting Capacity (top layer) kg : 80 | | | Lifting Speed m/min : 18 ~ 30 | | | Motor Output 110V kw x A : 0.8 x 8
Motor Output 220-240V kw x A : 0.8 x 4
Motor Type : series wound | | | Brake : mechanical ratchet | | | Lifting Height m : 23 | | | Wire Rope Φ mm×m : 4 x 24 | | | Percentage Duty Cycle : 25% ED | | | |
| | |
WARNING
Winches are not to be used for the moving of persons
WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
|
| | |
DIMENSIONS (mm) | | |  | | |
STANDARDACCESSORIES
● 4 mm x 24 m wire rope
● Weight hook CHW-0032
● Pendant Switch CPB-313
● Switch cord 1.25 mm2 x 6C X 10 m
● Power lead 1.5 mm2 x 3C X 5 m and industry plug
OPTIONALACCESSORIES
● Remote control PB-316 assembly
PACKAGE
● Winch Weight : 9 kg
● Gross Weight : 18 Kg
● Box Dimension : 355 × 355 × 270 mm
| | | | | | |
| |
| | | | | | | |
|
|
