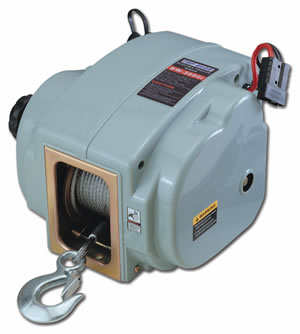

| | Electric Trailer Winch DW-3000i |
| |  |
| | |
| | FEATURES
● Powerful permanent magnet motor with reverse feature allows winchingin as well as winching out for DW-3000i. DW-1500i allows winching inonly.
● High impact, weather- resistant plastic housing for extra durability
● Manual freespool for rapid wire rope payout
● An emergency crank handle for emergent winching in when power off.
● Circuit breaker motor protection prevents overload and subsequent damage.
● Quick connector kits and tow-ball adapter plate for rear mounting of portable winch.
● Main applications of boat ramping, light duty self-recovery ofvehicle, general farm and ranch use, boat launching and retrieving , andmultipurpose of trailer. |
| | |
| | SPECIFICATION
| | LinePull : 1,361 kg / 3,000 lb | | | Rolling Load :11,340 kg / 25,000 lb | | | Motor :300 w / 0.4 hp,permanentmagnet | | | GearRatio : 480:1 | | | Brake : mechanical | | | WireRope Supplied : 5.5 mm × 15.2 m ( 7 / 32"× 50') | | | | Note : Above performance ratings are based on 50Hz supply. (60 Hz motor available as option resulting in a reduction oflifting capacities by 20% and a speed increase of 20%) |
|
|
| | |
| | APPLICATION
● Boat ramping
● Light duty self-recovery of vehicle
● General farm and ranch use
● Boat launching and retrieving
● Multipurpose of trailer
|
| | |
| | LINE SPEED ANDAMP. DRAW ( 1st layer of rope on the drum)| Line Pull kg / lb | Line Speed mpm / fpm | Amp. Draw 12V | Amp.Draw 24V | | No Load | 1.3 / 4.0 | 4 | 2 | | 454 / 1,000 | 1.1 / 3.5 | 19 | 13 | | 680 / 1,500 | 1.0 / 3.4 | 23 | 14 | | 907 / 2,000 | 1.0 / 3.3 | 27 | 15 | | 1,361 / 3,000 | 0.9 / 3.1 | 34 | 17 |
|
|
WARNING
Winches are not to be used for the lifting or moving of persons
WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
|
| |
DIMENSIONS(mm/in)
|
| |  |
| | |
| | STANDARDACCESSORIES
● Hand-held remote switch w / 3 m (10') cord
● Wire rope with hook
● Circuit breaker
● Battery lead
● Emergency crank handle
● Ball adapter plate
● Snatch block WA-0403
PACKAGE
● Winch Weight : 17.1 kg / 37.8 lb
● Gross Weight : 21.1 kg / 46.5 lb
● Box Dimension :348×307×231 mm (13.7" × 12.1" ×9.1") |
| | |
| | |
