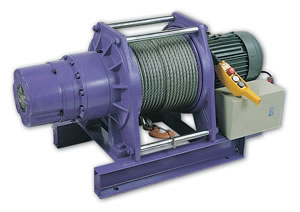

  Electric Winch CWG-34000
 pic/CWG-34000.jpg

 FEATURES
● Heavy duty high efficiency ball bearings on all running surfaces
● Extra heavy duty machine
● Planetary gearing for maximum efficiency
● Cast steel foot mountings
● Fabricated steel drum
● Electromagnetic spring-applied fail safe brake
● Supplied on steel base plate ready to mount
● Motor to IP54 as standard
● Enclosed drum flange to prevent rope becoming trapped between drum and support castings
● 24V low voltage control as standard
● Switch PB-306 with emergency stop as an option

 SPECIFICATION

 Lifting capacity (top layer) : 5,000 kg
 Lifting Speed
Option A : 8 ~ 12.2 m/min
Option B :  5.3 ~ 8 m/min
 Motor
Option A : 11 kw x 4 poles
Option B : 7.5 kw x 6 poles
 Lifting height: 192 m
 Wire rope : 22.4 mm x 200 m

 Note : Above performance ratings are based on 50Hz supply. (60 Hz motor available as option resulting in a reduction oflifting capacities by 20% and a speed increase of 20%)

1. All ratings are based on thetop layer. For each layer reduction on the drum pulling capacity isincreased by 10%
2. Use a snatch block for double line operation, to increase line pullby approximately 85%

PULLINGLOAD CAPACITY FOR VARIOUS INCLINES in kg


 Gradient% inclines
/ A
ngle in degrees
Pulling capacity (kg)
Level Surface35,000
 10% / 6º    20,000
 20% / 11º15,000
 40% / 25º10,000
 60% / 31º8,000
 80% / 39º7,000
      A gradient of 10% is a rise of one meter in ten meters

The pulling capacities are based on a free pulling load and 15% hasbeen allowed for friction (specific applications will vary)

WARNING
Winches are not to be used for the moving of persons

WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

DIMENSIONS(mm)


 CWG-31500

 STANDARDACCESSORIES
● Wire rope w/safety hook
● Switch cord 1.25 mm x 3C X 3 m
● Power lead 3.5 mm x 4C X 0.3 m
● Low voltage control LV-320
● Pendant Switch  CPB-161
● Base Plate

OPTIONALACCESSORIES
● Pendant control PB-306 assembly

PACKAGE
Winch Weight : 1,380 kg
Gross Weight : 1,545 kg
Box Dimension : 2,040 × 840 × 1,100 mm
