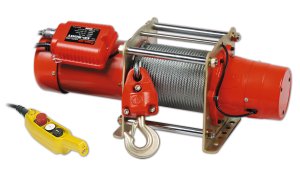

| | Electric Winch CP-500T |
| |  |
| | |
| | FEATURES
● Lightweight and compact design for easy installation
● Electromagnetic spring-applied fail safe brake
● Planetary gears for efficiency
● Cast steel foot mountings
● Heavy duty high efficiency ball bearing on all running surfaces
● Enclosed drum flange to prevent rope becoming trapped between drum and support castings
● Quiet running |
| | |
| | SPECIFICATION
| | Lifting Capacity (top layer): 500 kg | | | First Layer Speed: 11.6 m/min
Top Layer Speed: 18.3 m/min
| | | Motor Rating IP44 :1.8 kw × 4 poles | | | MaximumLifting Height : 58 m | | | Wire Rope : 7 mm× 60 m | | | Drum Barrel Diameter: 102 mm
Drum Flange Diameter: 180 mm
Distance between Flanges: 220 mm | | | Mounting bolt pattern mm: 267 x 156 | | | Note: Above performance ratings are based on 50 Hz supply. (60 Hz motoravailable as option resulting in a reduction of lifting capacities by20% and a speed increase of 20%) |
|
| |
1. All ratings are based on thetop layer. For each layer reduction on the drum pulling capacity isincreased by 10%
2. Use a snatch block for double line operation, to increase line pullby approximately 85%
|
| |
PULLINGLOAD CAPACITY FOR VARIOUS INCLINES in kg
| | Gradient% inclines
/ Angle in degrees
| Pulling capacity (kg) | | Level Surface | 3,700 | | | 10% / 6º | 2,000 | | | 20% / 11º | 1,500 | | | 40% / 25º | 1,000 | | | 60% / 31º | 800 | | | 80% / 39º | 700 | | A gradient of 10% is a rise of one meter in ten meters | | | | |
The pulling capacities are based on a free pulling load and 15% hasbeen allowed for friction (specific applications will vary) |
|
WARNING
Winches are not to be used for the moving of persons
WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
|
| |

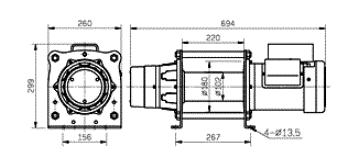

DIMENSIONS (mm)
|
| | |
| |  |
| | |
| | STANDARDACCESSORIES
● 7 mm x 60 m wire rope
● Weight hook CHW-0005
● Pendant Switch CPB-213
● Switch cord 3.5 mm2 x 5C X 6 m
● Power lead 3.5 mm2 x 3C X 0.3 m
OPTIONALACCESSORIES
● Remote control PB-330 assembly
● Low voltage control LV-320
PACKAGE
● Winch Weight : 54 kg
● Gross Weight : 56 kg
● Box Dimension : 730 × 262 × 350 mm |
| | |
